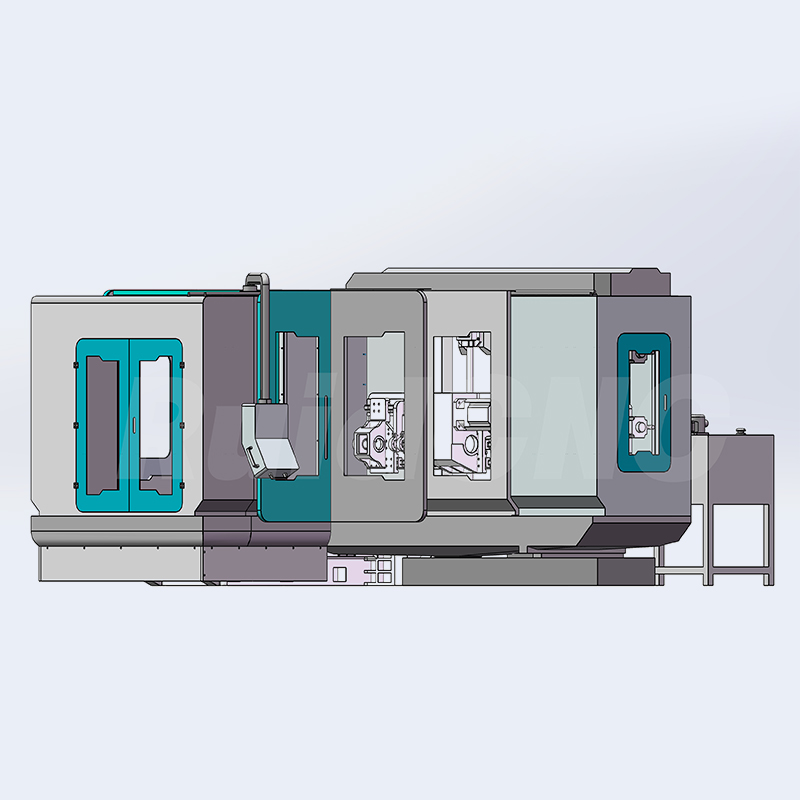

RD500-C2 Two Spindles Crank Shaft Gun Drilling Machine

Clean the small and medium-sized drag plate guide rail surfaces and tailstock sleeve sliding surfaces of the CNC deep hole drilling and boring machine body; Clean the screw rod, smooth rod, and clutch lever; Clean the surfaces of motors, electrical boxes, belt covers, and other parts with dust and oil stains, and clean the cooling pump and its accessories; Check if the oil level in the headboard box has been filled to the oil level indicator position; Add lubricating oil to the oil nozzles and grooves on the guide rail surface, tailstock sleeve surface, and other parts, and add butter to the grease cup.

Deep hole drilling machine: a specialized machine tool equipped with a high-pressure cooling system and guiding device, suitable for high-precision deep hole machining.
CNC lathe/machining center: Install deep hole drilling accessories (such as BTA system, gun drilling system).

Regularly replace cutting fluid and clean the filtration system to prevent impurities from blocking the pipeline.
Check the fit clearance between the guide sleeve and the drill bit (usually 0.01~0.03mm), and replace it promptly after wear.
After use, the cutting tools need to be cleaned, coated with anti rust oil, and stored in a dry environment.
